Tyco 5-6605414-1 RJ45 With Integrated Transformer 10/100Mbps

Name: Tyco 566054141 RJ45 With Integrated Transformer 10100Mbps
Brand: LINK-PP
Price: 1 USD

Brand Name : LINK-PP

Model Number : 5-6605414-1

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : Supportive & Competitive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray & Carton&Reel

PN# : 5-6605414-1

Made In China : SM-LPJ00XXABNL

Family : Rj45 With Magnetics

Interface : 10/100Mbps

LED : Flexible

Samples : Available Free

Contact Now

Tyco 5-6605414-1 RJ45 With Integrated Transformer 10/100Mbps

5-6605414-1

Trader Part Number

5-6605414-1

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ00XXABNL

Manufacturer

LINK-PP China

Description

Rj45 With Magnetics

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

5-6605414-1 ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±3%):
(P1-P2):(J1-J2)=1:1
(P7-P8):(J3-J6)=1:1
2.Inductance:
(P1-P2): 350uH MIN @100KHz 0.1V,8mA DC Bias
(P7-P8): 350uH MIN @100KHz 0.1V,8mA DC Bias
3.Insertion Loss:
-1.2dB MAX @ 0.1-80MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-12dB MIN @ 30-80MHz
5.Cross talk:
-35dB TYP @ 0.1-100MHz
6.Common To Common Mode Attenuation:
-30dB TYP @ 30-100MHz
7.Hipot Test: 1500VAC
8.Operating Temperature Range: 0℃ TO 70℃

Tyco 5-6605414-1 RJ45 With Integrated Transformer 10/100Mbps

Product Tags:

stacked rj45 connectors

rj45 magnetic jack

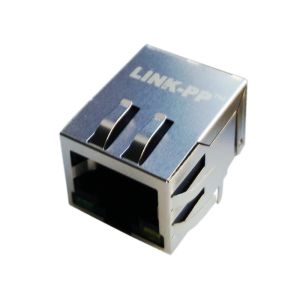

China Tyco 5-6605414-1 RJ45 With Integrated Transformer 10/100Mbps factory

Tyco 5-6605414-1 RJ45 With Integrated Transformer 10/100Mbps Images
